Diamond Sharpener Steel

Product Features

Introduction of outline for steel rod

The diamond sharpeners from CHUAN-CHEUNG, after improving unceasingly, first generation, second generation and now the third generation. The diamond powder adheres evenly on the rod and it is not easy to be fallen off.
It will increase the duration, extend the time for using and promote the effects of sharpening.
We have made special antirust treatment on steel rod and refine the surface of rod. It will not damage the blades when sharpen. The cost of diamond sharpener is very high and it is sold alone not matched with knife set.

We supply the service of logo printing on diamond rod. It can be in letters or designs. The position for logo is in 30mm (Length) x5mm (Width). Please make contact with us for more information in details.

At present, we supply standard quality of diameter in 10mm & 12.6mm for your choice.
At present, we supply standard quality of length in 8 inch /10 inch/12 inch/14 inch(rod only) for customers’ choice.

The diameter and length of rod can be designed as customers’ request. And it is asked for MOQ for mass production. Please make contact with us for more information in details.

Electroplating on rod: diamond powder coating
Hardness: 10 Mohs

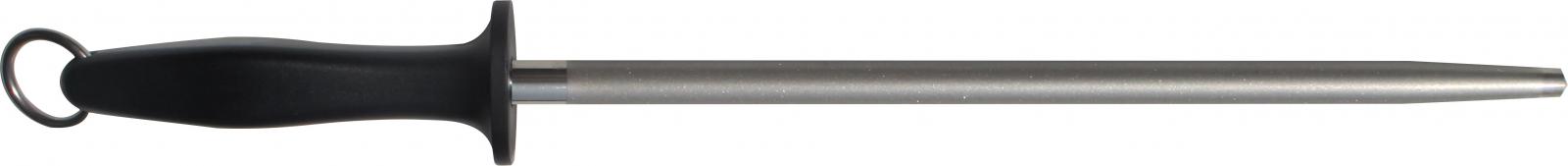

Please refer to above picture showing as assemble finished: diameter: 12.6mm, length : 12 inch.
Item No.: DPT-1312B. This is just for reference. The real size is based on real sample.

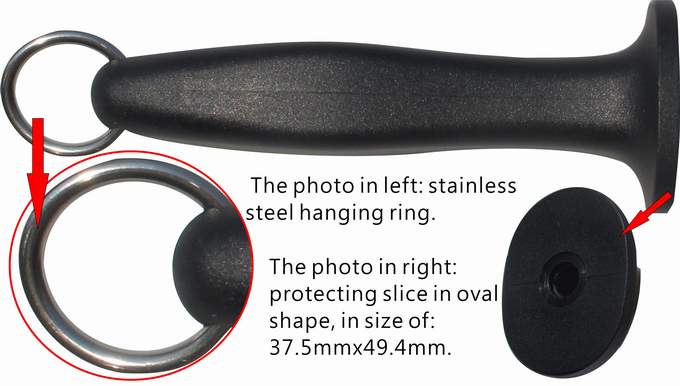

Handle style:”PT”

Over length of handle(stainless steel hanging ring is not included):131mm

Diameter of stainless steel hanging ring: 33mm around

The thinnest diameter of handle:21mm

The biggest diameter of handle(protecting slice is not included):26.5mm

Color of handle: black color, or in any colors per customers’ choice. But it will ask for MOQ for mass production if request for any colors except black.

The producing cost of “PT” handle is not so high. It’s the most popular and pattern in good sales. But logo can’t be put on handle. If customers prefer this pattern of handle and consider to put logo, it can be assembled with sharpening rods and logo put on rods.

The item number showed as follows if “ PT” handle assembled with diamond rod .

DPT-108B: “PT” handle in black color, electroplating with diamond powder, diameter of rod: 10mm, length of rod: 8 inch.

DPT-1010B: “PT” handle in black color, electroplating with diamond powder, diameter of rod: 10mm, length of rod: 10 inch.

DPT-1310B: “PT” handle in black color, electroplating with diamond powder, diameter of rod: 12.6mm, length of rod: 10 inch.

DPT-1312B: “PT” handle in black color, electroplating with diamond powder, diameter of rod: 12.6mm, length of rod: 12 inch.

DPT-1314B: “PT” handle in black color, electroplating with diamond powder, diameter of rod: 12.6mm, length of rod: 14 inch.

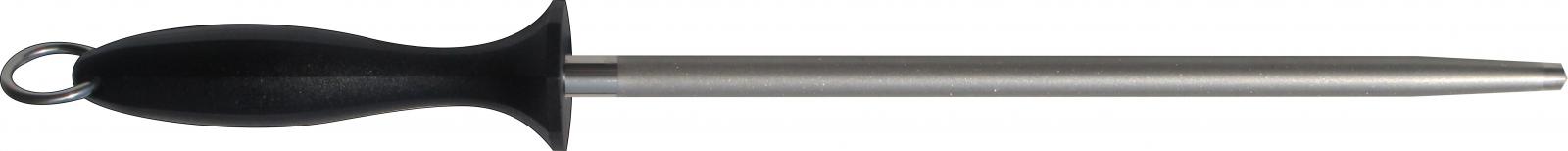

Please refer to above picture showing as assemble finished: diameter: 12.6mm, length : 12 inch.
Item No.: DPE-1312B. This is just for reference. The real size is based on real sample.

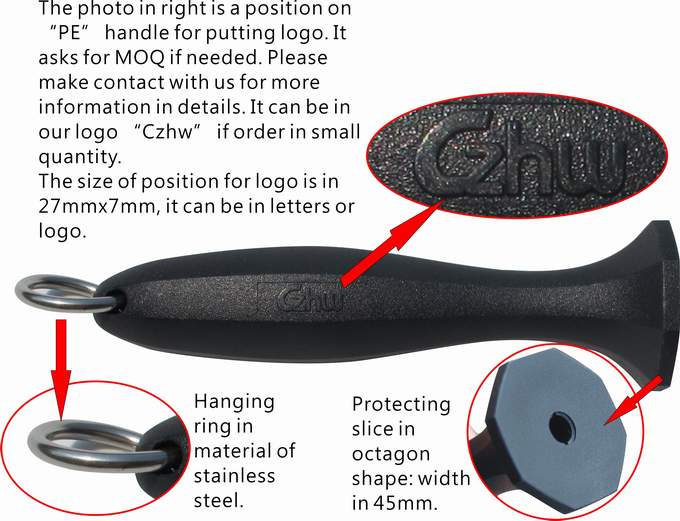

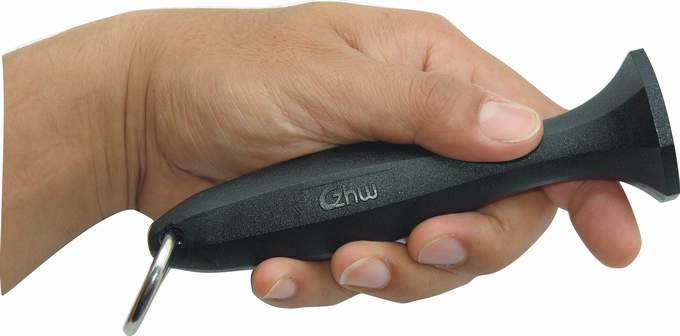

Handle style:”PE”
Over length of handle(the stainless steel hanging ring is not included):152mm

Diameter of stainless steel hanging ring: about 33mm

The thinnest diameter of handle: 18.3mm

The thickest diameter of handle( the protecting slice is not included):31.5mm

Color of handle: in black, or in any colors per customers’ choice. But it will ask for MOQ for mass production if request for any colors except black.

The producing cost of “PE” handle is not high. It will be the best choice if customers consider to put logo on handle.

The item number showed as follows if “ PE” handle assembled with diamond rod .

DPE-108B: “PE” handle in black color, electroplating with diamond powder, diameter of rod: 10mm, length of rod: 8 inch.

DPE-1010B: “PE” handle in black color, electroplating with diamond powder, diameter of rod: 10mm, length of rod: 10 inch.

DPE-1310B: “PE” handle in black color, electroplating with diamond powder, diameter of rod: 12.6mm, length of rod: 10 inch.

DPE-1312B: “PE” handle in black color, electroplating with diamond powder, diameter of rod: 12.6mm, length of rod: 12 inch.

DPE-1314B: “PE” handle in black color, electroplating with diamond powder, diameter of rod: 12.6mm, length of rod: 14 inch.

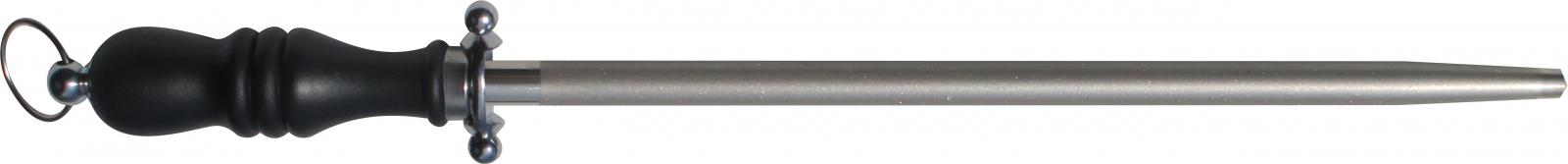

Please refer to above picture showing as assemble finished: diameter: 12.6mm, length : 12 inch.
Item No.: DPF-1312B. This is just for reference. The real size is based on real sample.

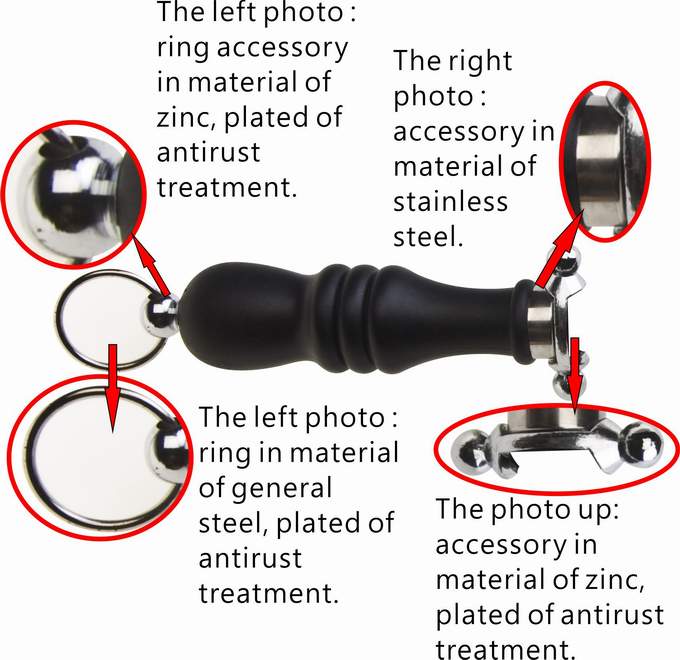

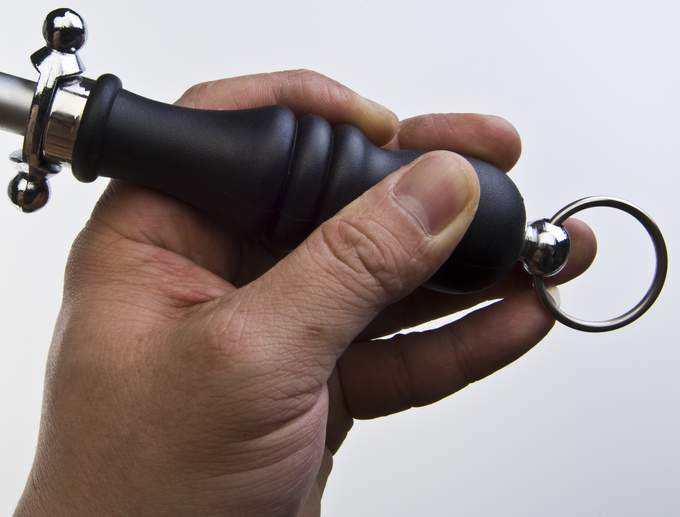

Handle Style: “PD”

Over length of Handle(stainless steel hanging ring in not included): 128mm

Diameter of stainless steel hanging ring: around 27.8mm

The thinnest diameter of handle: 19.2mm

The biggest diameter of handle( protecting slice is not included): 32.2mm

Color of handle: black color, or in any colors per customers’ choice. But it will ask for MOQ for mass production if request for any colors except black.

The material cost of “PD” is very high and shape is general. We will not suggest customers to use this pattern if you consider on putting logo on handle. It is much suitable to assemble steel rod which can be put logo on.

The item number showed as follows if “ PD” handle assembled with diamond rod .

DPD-108B: “PD” handle in black color, electroplating with diamond powder, diameter of rod: 10mm, length of rod: 8 inch.

DPD-1010B: “PD” handle in black color, electroplating with diamond powder, diameter of rod: 10mm, length of rod: 10 inch.

DPD-1310B: “PD” handle in black color, electroplating with diamond powder, diameter of rod: 12.6mm, length of rod: 10 inch.

DPD-1312B: “PD” handle in black color, electroplating with diamond powder, diameter of rod: 12.6mm, length of rod: 12 inch.

DPD-1314B: “PD” handle in black color, electroplating with diamond powder, diameter of rod: 12.6mm, length of rod: 14 inch.

Please refer to above picture showing as assemble finished: diameter: 12.6mm, length : 12 inch.
Item No.: DPF-1312B. This is just for reference. The real size is based on real sample.

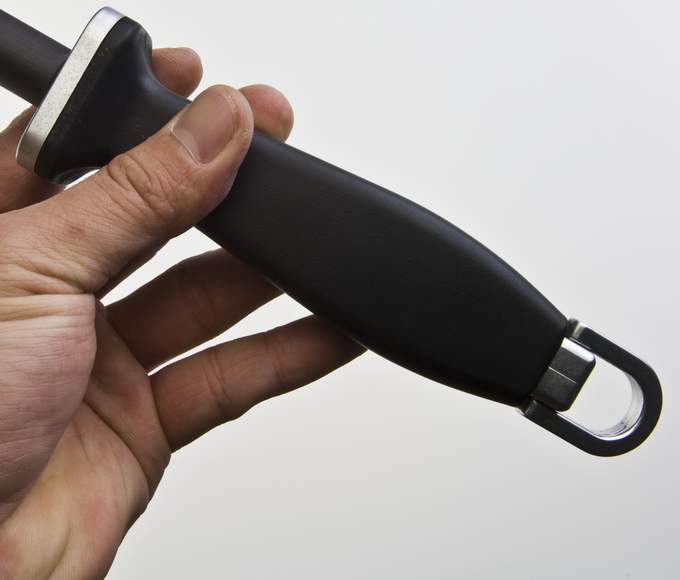

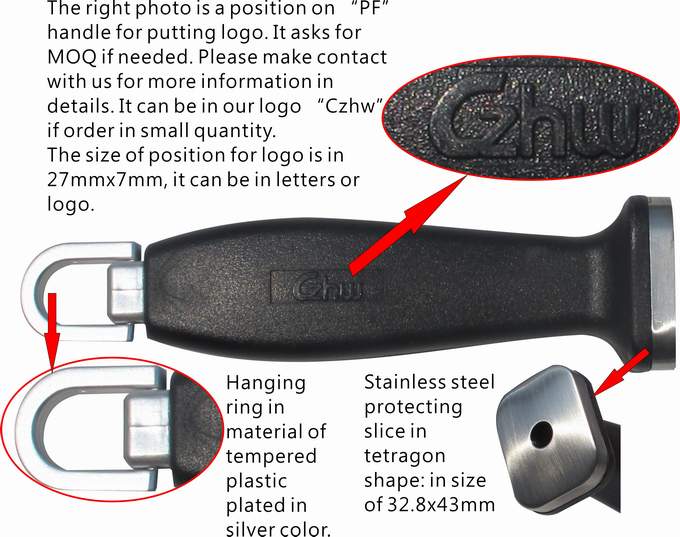

Handle style:”PF”
Over length of handle( hanging ring is not included): 132mm

Size of hanging ring: 15.8mmx17.8mm around

The thinnest size of handle:18.7mmx24mm(rectangle shape)

The biggest size of handle ( protecting slice is not included): 25.2mmx34.9mm(rectangle shape)

Color of handle: in black, or in any color per customers’ choice. But it will ask for MOQ for mass production if request for any colors except black.

The producing cost of “PF” handle is very high & the shape is artistic. Logo can be put on handle. It will be the best choice if customers consider to put logo on handle & selling their products in high end level.

The item number showed as follows if “ PF” handle assembled with diamond rod .

DPF-108B: “PF” handle in black color, electroplating with diamond powder, diameter of rod: 10mm, length of rod: 8 inch.

DPF-1010B: “PF” handle in black color, electroplating with diamond powder, diameter of rod: 10mm, length of rod: 10 inch.

DPF-1310B: “PF” handle in black color, electroplating with diamond powder, diameter of rod: 12.6mm, length of rod: 10 inch.

DPF-1312B: “PF” handle in black color, electroplating with diamond powder, diameter of rod: 12.6mm, length of rod: 12 inch.

DPF-1314B: “PF” handle in black color, electroplating with diamond powder, diameter of rod: 12.6mm, length of rod: 14 inch.

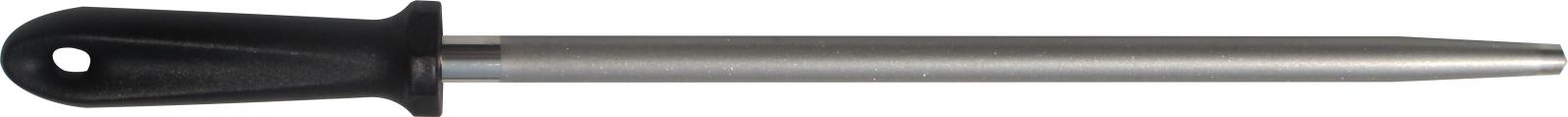

Please refer to above picture showing as assemble finished: diameter: 12.6mm, length : 12 inch.
Item No.: DPV-1312B. This is just for reference. The real size is based on real sample.

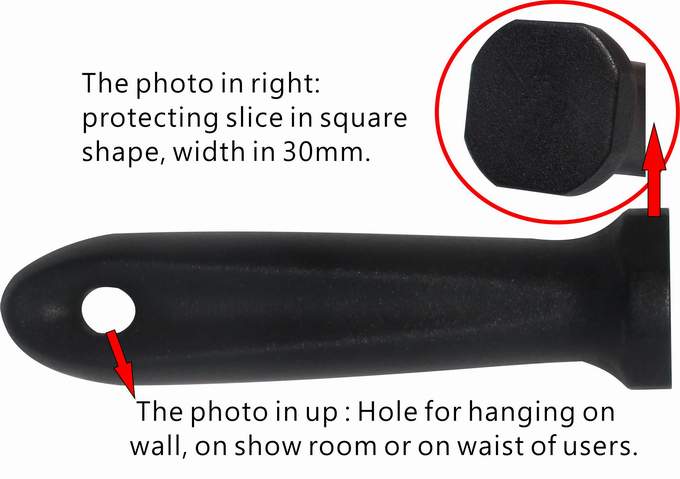

Handle style: “PV”
Over length of handle: 120mm
The thinnest diameter of handle: about 21.7mm
The most width of handle ( protecting slice is not included):
about 28mm
Color of handle: black color , or in any colors per customers’ choice. But it will ask for MOQ for mass production if request for any colors except black.

“ PV” handle is the cheapest style and it will be the best choice if customers considering about importing cost.

The item number showed as follows if “ PV” handle assembled with diamond rod .

DPV-108B: “PV” handle in black color, electroplating with diamond powder, diameter of rod: 10mm, length of rod: 8 inch.

DPV-1010B: “PV” handle in black color, electroplating with diamond powder, diameter of rod: 10mm, length of rod: 10 inch.

DPV-1310B: “PV” handle in black color, electroplating with diamond powder, diameter of rod: 12.6mm, length of rod: 10 inch.

DPV-1312B: “PV” handle in black color, electroplating with diamond powder, diameter of rod: 12.6mm, length of rod: 12 inch.

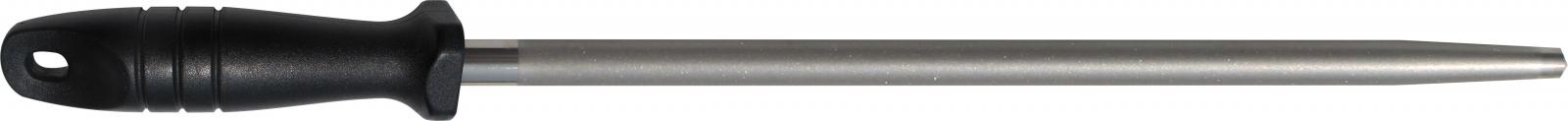

Please refer to above picture showing as assemble finished: diameter: 12.6mm, length : 12 inch.
Item No.: DPJ-1312B. This is just for reference. The real size is based on real sample.

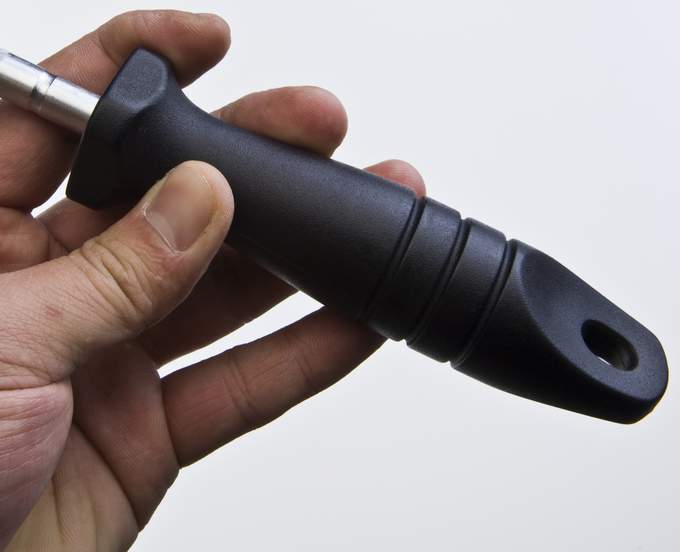

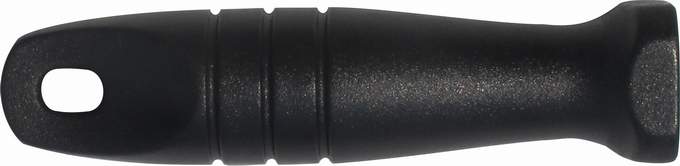

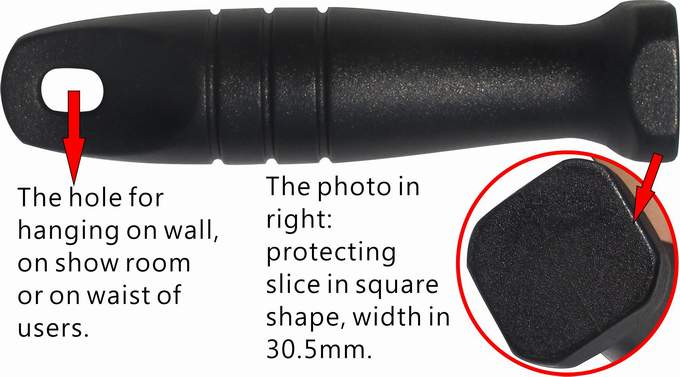

Handle style: “PJ”

Over length of handle:128mm

The thinnest diameter of handle: about 22mm

The biggest diameter of handle(protecting slice is not included): about 30mm

Color of handle: black color , or in any colors per customers’ choice. But it will ask for MOQ for mass production if request for any colors except black

The item number showed as follows if “ PJ” handle assembled with diamond rod .

DPJ-108B: “PJ” handle in black color, electroplating with diamond powder, diameter of rod: 10mm, length of rod: 8 inch.

DPJ-1010B: “PJ” handle in black color, electroplating with diamond powder, diameter of rod: 10mm, length of rod: 10 inch.

DPJ-1310B: “PJ” handle in black color, electroplating with diamond powder, diameter of rod: 12.6mm, length of rod: 10 inch.

DPJ-1312B: “PJ” handle in black color, electroplating with diamond powder, diameter of rod: 12.6mm, length of rod: 12 inch.
